Masterplan & Urban Development Model

A premium stakeholder and sales presentation model for a campus, township or urban district, balancing readable massing with highlighted landmarks, infrastructure corridors and phased development zones.

Indicative starting point₹1,40,000Indicative starting price; excludes GST, shipping and unusually complex design work. Final scope follows written proof approval.

Lead time: 5–6 weeks after written proof approval
Materials: Aluminium subframe · Premium plywood base · Cast acrylic · Painted resin · Low-voltage edge and zone lighting
Order path: Scoped quotation · no checkout

Request a scoped quote

Production boundaries

Approve the explanation before we build the object.

Production begins only after written proof approval; two revision rounds are included before approval.
The starting scope excludes missing source-file reconstruction, site installation, extraordinary freight and unusually complex design work.

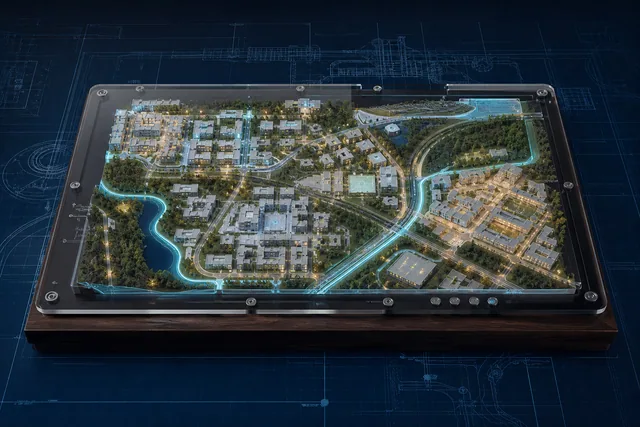

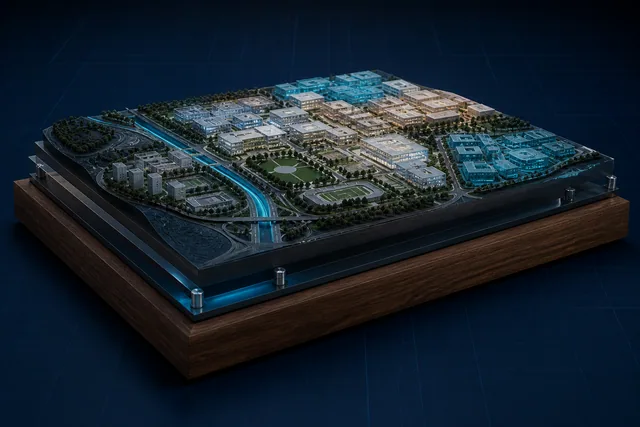

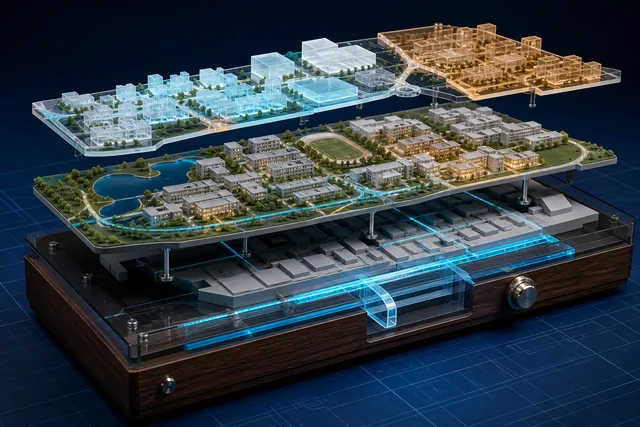

Concept imagery explains an art direction only; final geometry, colours, labels and production feasibility remain subject to the approved source pack.
Building detail, trees, vehicles and public realm elements are simplified according to scale; the model is not a statutory planning record.
Display indoors on a level, load-rated surface; large bases require two-person lifting and destination access checks.
Small removable pieces are presentation components, not toys, and must be kept away from children without supervision.
The model requires a verified display plinth and access route; low-voltage illumination must use the supplied power system.

Structured quote intake

Scope this model

All fields marked * are required. Two consolidated revision rounds are included before written proof approval.

Name *Email *Phone *Model quantity *

Offer choicesScope *Controlled building volumes, landscape and movement network. Indicative unit starting point: ₹1,40,000.Overall dimensions and available display area *Share the available length, width, height, access route and any weight limit in millimetres.Source files and reference set *List CAD/BIM formats, drawings, renders, photographs and the revision status of each source.Required scale or decision to be explained *State a target scale such as 1:100, or describe what the audience must understand if scale is not fixed.Interaction requirement *Required delivery deadline and event date *Include the city, installation window and any immovable launch or exhibition date.

Additional contextReference filesChoose up to 5 JPEG or PNG source images, 20 MiB maximum each. Your browser privately prepares each to 1.5 MP and 384 KiB or less before upload. References expire after 30 days.

Protected verification activates on the hosted storefront.

Quote request only · payments remain disabled · production requires a final written quote and proof approval.
