Machinery Cutaway & Process Demonstrator

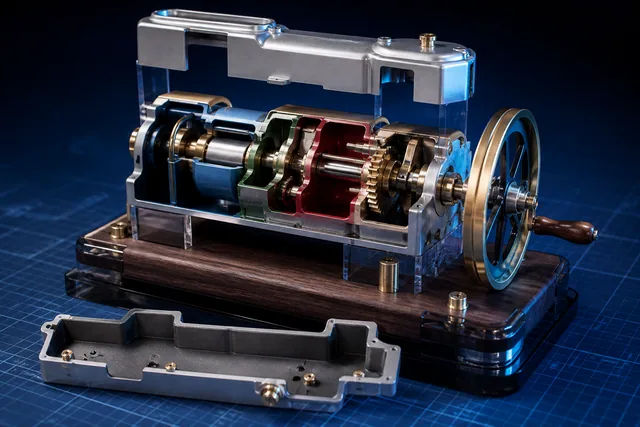

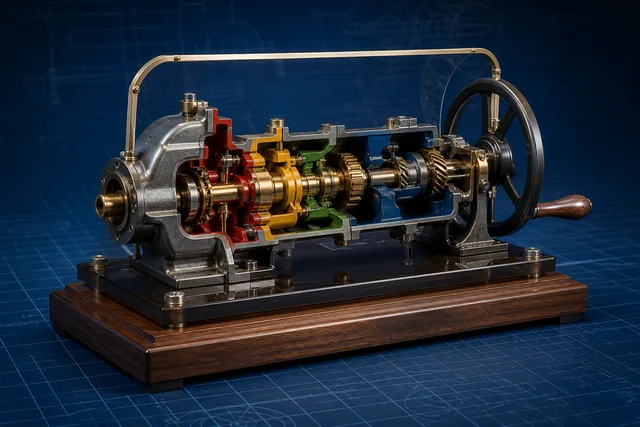

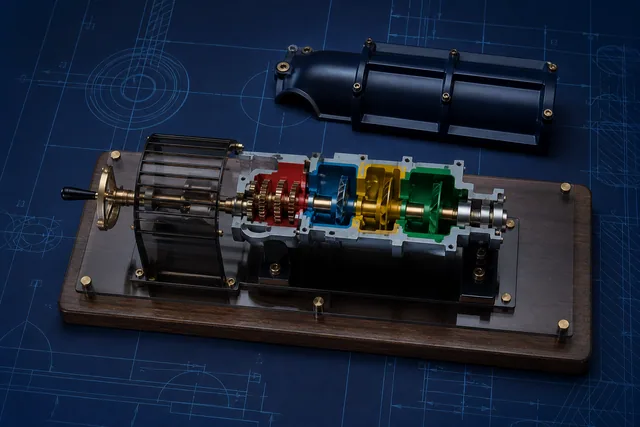

A training or exhibition demonstrator derived from controlled machinery files, with removable shells, colour-coded assemblies and optional hand-driven movement to explain sequence without representing a functional production machine.

Indicative starting point₹95,000Indicative starting price; excludes GST, shipping and unusually complex design work. Final scope follows written proof approval.

Lead time: 4–6 weeks after written proof approval
Materials: Machined acrylic · Painted resin · Anodised aluminium · Brass axles · Magnetic access panels
Order path: Scoped quotation · no checkout

Request a scoped quote

Production boundaries

Approve the explanation before we build the object.

Production begins only after written proof approval; two revision rounds are included before approval.
The starting scope excludes missing source-file reconstruction, site installation, extraordinary freight and unusually complex design work.
Concept imagery explains an art direction only; final geometry, colours, labels and production feasibility remain subject to the approved source pack.
Clearances and motion are presentation abstractions; the model is not designed for load, speed, pressure, heat or production validation.
Display indoors on a level, load-rated surface; large bases require two-person lifting and destination access checks.
Small removable pieces are presentation components, not toys, and must be kept away from children without supervision.
Moving parts must be operated slowly by a trained presenter; isolate the low-voltage electrical supply before opening access panels and keep fingers clear of linkages.
